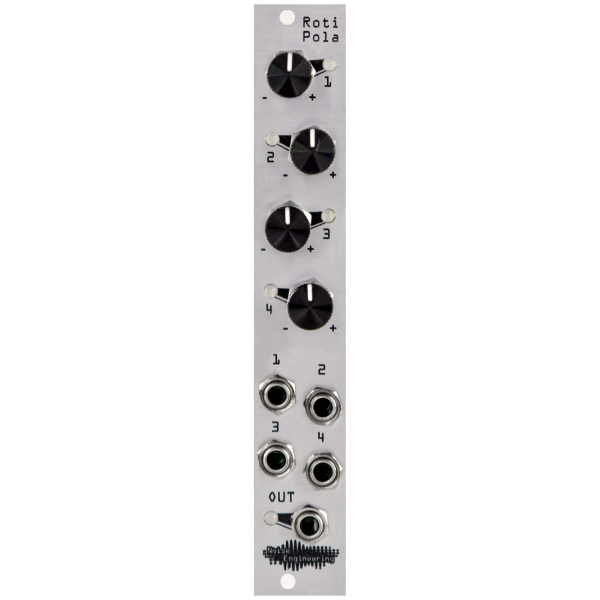

Noise Engineering Roti Pola Eurorack Attenverting Control Voltage Mixer Module
Noise Engineering Roti Pola - Attenuverting CV Mixer
The Noise Engineering Roti Pola is a four channel attenuverting CV mixer and offset with visual feedback in a small package. With nothing patched to channel 1, a 5v offset is applied to the mix, useful for controlling other parameters or modifying CV signals.
Interface
• Channel knobs 1-4: Attenuverters; with nothing patched into it's input, channel 1 is normalled to a 5v offset. Corresponding channel LEDs show the signal post attenuvertion being sent to the mixer. Green indicates a positive signal, red indicates a negative signal
• Inputs 1-4: Input your CV here for mixing and attenuverting
• Output: Final mix output. LED shows outgoing CV, with green indicating a positive signal and red indicating a negative signal.
| Width; | 4hp |
| Max Depth: | 21mm |
| Power: | +12V: 58mA |
| -12V: 40mA |
