Noise Engineering Fractio Solum Eurorack Clock Divider and Multiplier Module
Noise Engineering Fractio Solum - Clock Divider Multiplier
Fractio Solum is a simple and easy-to-use clock divider / multiplier. Patch a clock to the In jack, dial in a fraction with the encoder and you're off! CV over ratio opens up an extra level of clocking and sequencing power. Fractio Solum also includes a mute feature, a reset input, x2 and /2 outs that further divide and multiply the selected ration by 2 and a BOC output that outputs a trigger each time the division starts a cycle.
Fractio Solum's trigger inputs will trigger from any signal over +2v. The CV input expects only positive voltage, 0v to +5v. The outputs send triggers at about +5v.

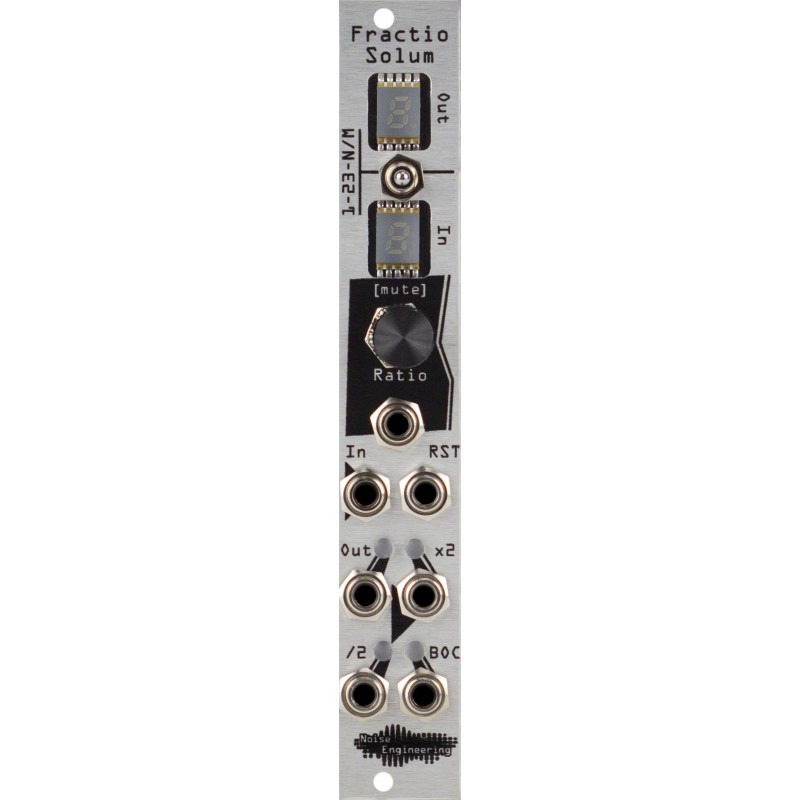

Interface
•
•
•
•
• RST: Reset input. Resets the clock cycle to the beginning
• Out: Clock output based on ration shown on the Out / In displays
• x2: Identical to Out but twice the rate.
• /2: Identical to Out but half the rate
• BOC: Outputs a trigger at the beginning of each clock cycle, based on the /2 output. This means that the main Out jack will complete two cycles every time BOC fires.
• 1-23-N/M: Selects a subset of ratios that can be selected with the encoder or CV.
| Width: | 4hp |
| Max Depth: | 21mm |
| Power: | +12V: 50mA |
| -12V: 14mA |
