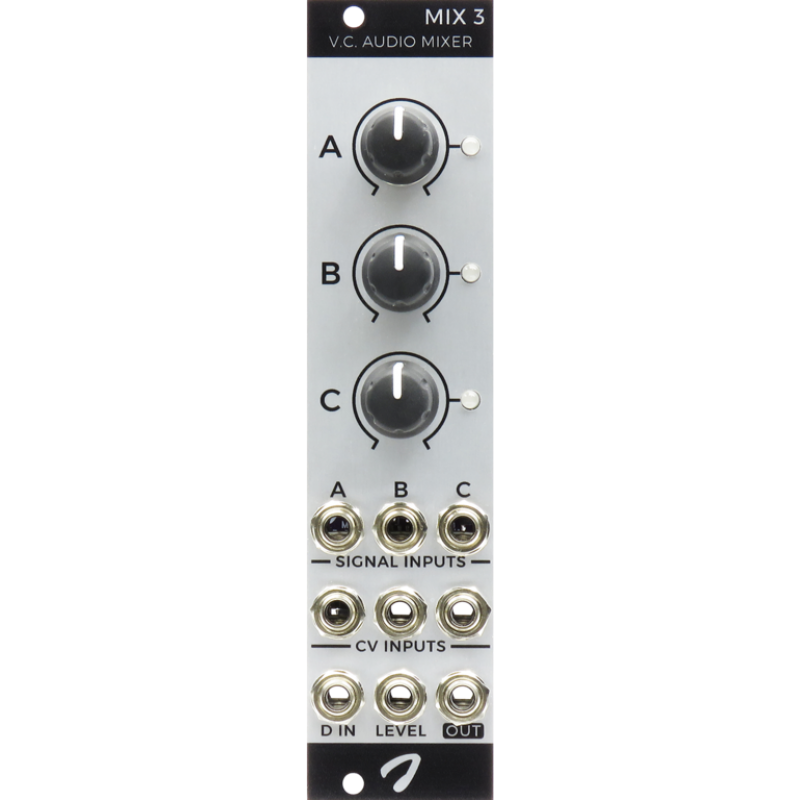

Joranalogue Mix 3 - 3+1 Channel Voltage Controlled Audio Mixer


By combining a mixer and four VCAs in a single module, Mix 3 manages to provide a unique combination of compact size and functionality in just 6hp. High-end signal paths ensure extremely low noise and distortion, which is more natural for audio than linear, as it matches the human hearing. However, all signal paths are DC-coupled, so control voltage (CV) signals can be processed as well.


What truly sets Mix 3 apart from other compact mixing modules are the three CV inputs, providing voltage control over the signal levels. This even allows you to go beyond unity gain and reach up to +20dB of amplification. Once a CV input is used, the corresponding channel knob becomes a CV attenuator.


When clipping, Mix 3 does so in a clean, symmetrical way. This yields a very pure overdirven sound, only containing odd harmonics, and allows the module to be used as a triple voltage controlled distortion.


Additional features include audio indicator LEDs, a fourth auxiliary input, voltage control over the output level and a line output jumper setting.


Features


•           Analogue audio signal mixer with three high-end DC-coupled voltage controlled channels

•           Control knobs become attenuators when CV inputs are used

•           Symmetrical clipping yields pure distortion tone

•           White indicator LEDs with audio response for quick signal identification

•           Additional 'D' direct unity gain inverting input

•           Jumper allows selection between standard or lowered (-20dB) output level, for direct connection to line inputs

•           Precision-milled 2mm anodised aluminium front panel with high-resolution, non-erasable graphics

•           Bullet-proof design: polarised power header and MOSFET protection circuit

•           Includes 16-to-10-pin Eurorack power ribbon cable

•           Premium mounting hardware: black screws, black nylon washers and matching hex key

•           High-quality components and assembly; designed and made in Belgium


Specifications


Width:6hp
Max Depth:43mm
Power:+12V: 30mA

-12V: 25mA


Write a review

Please login or register to review
  • Manufacturer: Joranalogue
  • Product Code: JORM3
  • Availability: 3
  • £130.00
  • Exc VAT: £108.33
