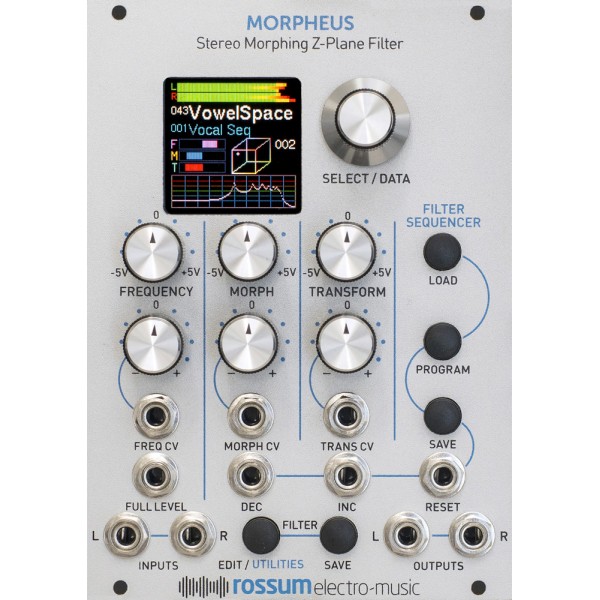

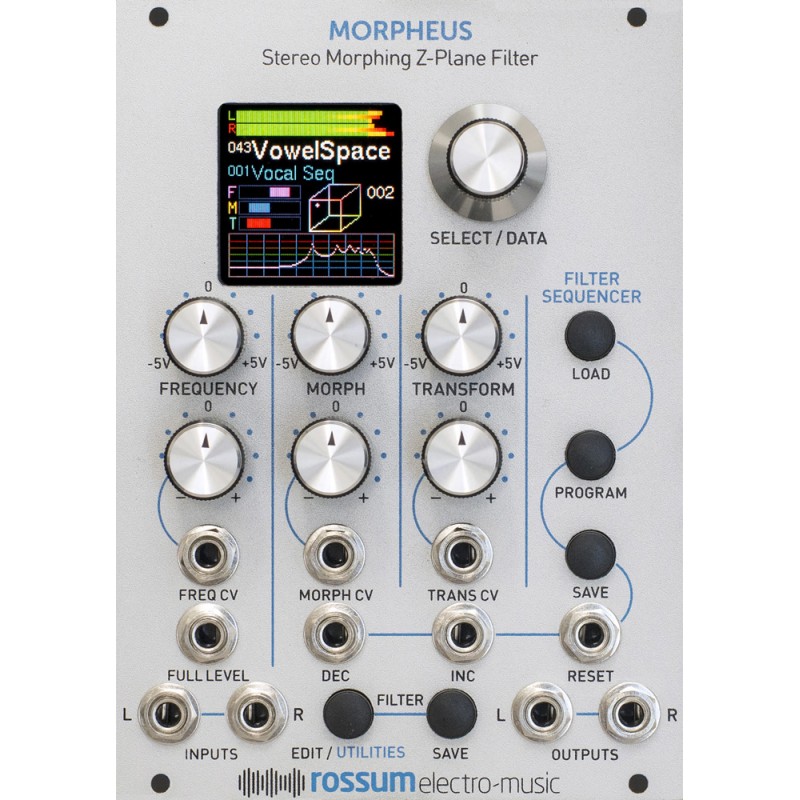

Rossum Electro-Music Morpheus - Stereo Morphing Z-Plane Filter

With the Morpheus With the Morpheus digital filter module, Rossum Electro-Music are finally able to unleash the full power of the 14-pole Z-Plane Filters that Dave Rossum invented for the E-mu Morpheus synthesizer.

The Morpheus eurorack module includes over 280 filter configurations, what they call Cubes. Each Cube is composed of up to 8 complex filters that you can picture as being at the corners of a three dimensional cube (hence the name). Morpheus gives you the ability to smoothly interpolate between those 8 filters within the cube's three dimensional space.

Due to process limitations back in the day, the original Morpheus was capable of real-time morphing in one dimension, but interpolation in the frequency and transform dimensions were set at note-on and remained static for the remainder of the note. But even with that limitation, Morpheus offered sonic capabilities that are unmatched to this day.

With the Morpheus filter module, you now have simultaneous real-time CV control over all three dimensions, for dynamic timbral effects unlike anything you've ever heard before. In stereo.

Features

•           Over 280 14-pole filter configurations

•           Real-time manual and CV control of Frequency, Morphing and Transformation

•           The ability to save hundreds of customized filter configurations

•           A sequencer for stepping through filter configurations under trigger or clock control

•           A large OLED display for programming and real-time displays of morphing

•           Like all Rossum Electro-Music digital modules, all parameters are available for adjustment with a single button press. No menu diving

•           289 Filter cubes

•           1000 Filters

•           200 filter sequences

•           20,000 dynamically allocated sequence steps

•           Inputs

Audio L/R - 2x 3.5mm mono socket, 100kΩ Input Impedance

Full Level Frequency CV - 1x 3.5mm mono socket, 100kΩ Input Impedance

Attenuverted Frequency CV - 1x 3.5mm mono socket, 100kΩ Input Impedance

Attenuverted Morph CV - 1x 3.5mm mono socket, 100kΩ Input Impedance

Attenuverted Transform / Distortion CV - 1x 3.5mm mono socket, 100kΩ Input Impedance

Filter Sequence Dec - 1x 3.5mm mono socket, 100kΩ Input Impedance, 1.6V threshold

Filter Sequence Inc - 1x 3.5mm mono socket, 100kΩ Input Impedance, 1.6V threshold

Filter Sequencer Reset - 1x 3.5mm mono socket, 100kΩ Input Impedance, 1.6V threshold

•           Outputs

Audio L/R - 2x 3.5mm mono socket, 1kΩ Input Impedance
