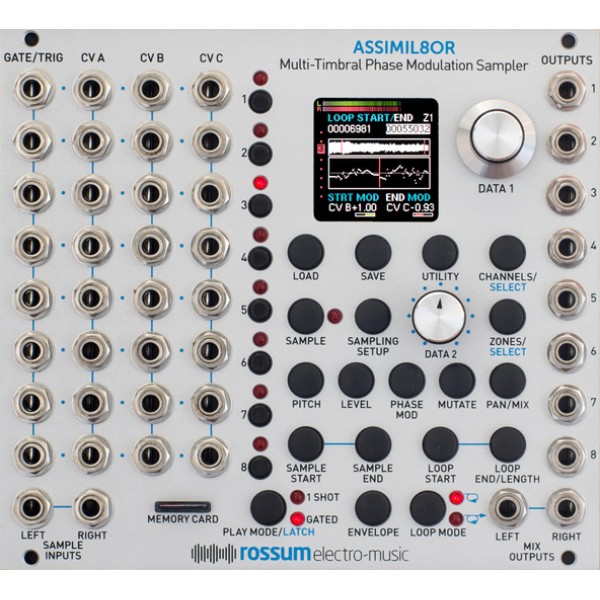

Rossum Electro-Music Assimil8or - Multi-Timbral Phase Modulation Sampler


Designed to provide a powerful and flexible sampling engine for modular synthesis, the Assimil8or Multi-Timbral Phase Modulation Sampler module is the latest incarnation of Dave Rossum's decades-long pioneering of affordable professional sampling technology.


Assimil8or provides eight independent channels of sampling with sound quality that can range from extremely hi-fi to low fi, all with extensive real-time CV control.


Features


•           Eight channel multi-timbral operation. Each channel will be available from it's own independent output as well as appearing in the stereo mix

•           Superb 24-bit A/D and D/A conversion

•           Mono or stereo sampling. Channels can be configured as eight mono voices, four stereo voices or any combination. (Well, any combination that adds up to eight)

•           The ability to assign up to 8 samples to each channel and select between them in real time via CV

•           DC coupling through the signal path for sampling of control voltages

•           Unique timbral capabilities with the ability to phase modulate samples by external analog signals or by other samples (a first, we beieve)

•           Variable sample fidelity with independently selectable sample rate and bit depth

•           Real-time CV control of bit depth

•           Real-time CV control of aliasing (from virtually none to lots)

•           Extensive sample manipulation and looping capabilities

•           Sample scrubbing under CV control

•           One-shot or gated sample playback with variable attack and release times

•           Gate / trigger inputs and CV inputs for each sample that can be assigned independently for each channel to virtually any sample parameter. Examples include:

Pitch

Level

Bit Depth

Phase Modulation

Pan

Scrub

Sample Start

Sample Length

Loop Start

Loop Length

Release Time

•           A front panel accessible SD card for sample and preset storage


Sample Memory

2,300 seconds at 48kHz mono, freely allocatable between the 8 channels


Sample Rates

48kHz, 96kHz and 192kHz


A/D and D/A

24 Bits


Internal Processing

32 Bits


Latency

100 microseconds at the Mix Outputs, 180 microseconds at the Individual Outputs


Inputs

Sample L/R - 2x 3.5mm mono socket, 100kΩ Input Impedance

Gate / Trigger 1-8 - 8x 3.5mm mono socket, 100kΩ Input Impedance, 1.6V threshold


Control Voltage A 1-8

8x 3.5mm mono socket, 100kΩ Input Impedance, 96kHz sample rate, anti-alias filtered to 20kHz bandwidth


Control Voltage B&C 1-8

16x 3.5mm mono socket, 100kΩ Input Impedance, 49kHz sample rate, no anti-alias filtering


Outputs

Mix Outputs L/R - 2x 3.5mm mono socket, 1kΩ Input Impedance

Individual Outputs - 8x 3.5mm mono socket, 1kΩ Input Impedance


Supplied Accessories

1x Micro SD card

1x 16-pin, Doepfer style cable

4x M3 screws

4x M2.5 screws

4x Nylon washers

1x Quickstart guide


Specifications


Width:28hp
Max Depth:25mm
Power:+12V: 220mA

-12V: 30mA
