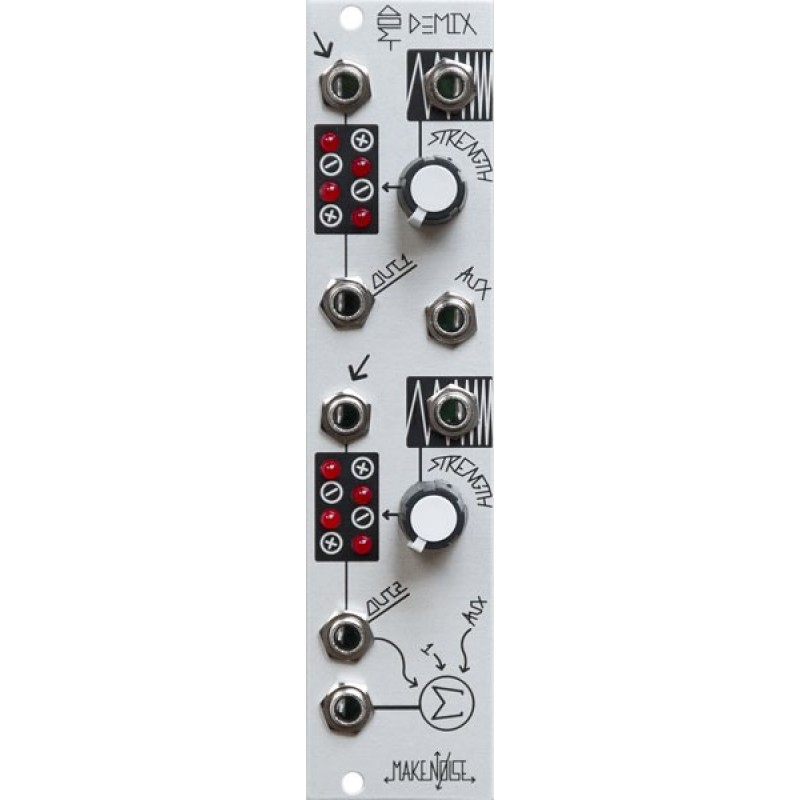

Make Noise modDemix Eurorack Dual Modulator Module
The Make Noise modDemix - Dual Modulator
The modDemix music synthesizer module features 2 identical direct-coupled balanced modulator circuits that may be used together or independently for Ring Modulation, VCA, Mixer, Signal Multiplication, Voltage Controlled Polarization, Attenuation and more
Features
• Unique balanced modulator circuit turns OFF around zero volts at the Carrier / Control INput, making the circuit behave as a VCA
• STRENGTH is a Combo knob, with nothing patched to STRENGTH CV IN, it works as a standard panel control, setting Level. With signal patched to STRENGTH CV IN, it works as an attenuator, setting the strength of the modulator
• Both circuits feed a summing stage, allowing the module to be used as a voltage controlled mixer
• AUXiliary IN allows for the stacking of multiple modDemix and / or Optomix to create larger mixes
• Able to introduce warm distortions to audio signals, sounds like no other VCA or Ring Mod
• MAX BLINKENLIGHTS, 8 LEDs packed into a small 6hp module
• Pairs well with MATHS and Optomix
| Width: | 6hp |
| Max Depth: | 24mm |
| Power: | +12V: 30mA |
| -12V: 30mA |
