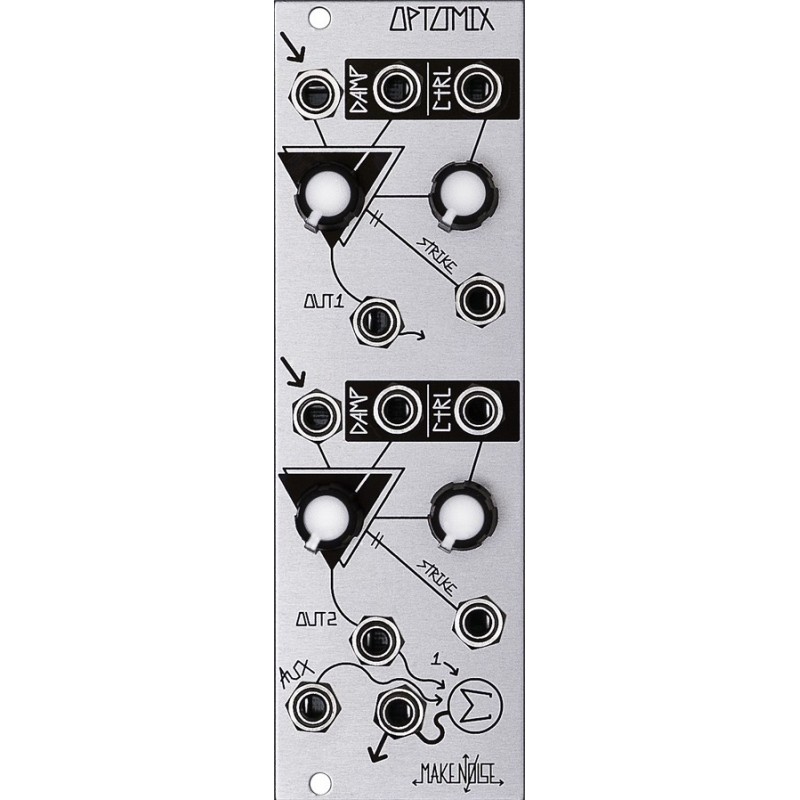

Make Noise Optomix - Dual Low Pass Gate
The Optomix music synthesizer is a two channel Low Pass Gate, providing simultaneous voltage control over amplitude and frequency content of a signal. It is in essence, a Voltage Controlled Filter Amplifier (VCFA) that has an extremely organic response to control signals. The Low Pass Gate is a classic West Coast synthesis circuit.
This latest revision adds audio side-chain compression and expands CV generation and processing capabilities
Features
• Damp circuit updated to accept audio as well as CV allows for patching side-chain compression
• STRIKE INput allows use of Gate signal to trigger Low Pass Gate circuit, 'plucking' or 'striking' the vactrol
• DAMP and STRIKE parameters combine to allow for easy programming of percussive sounds (sharp Attack w / Voltage Controlled Decay)
• Normalisation of a positive offset to the Channel inputs allows for level-shifting of CV, Envelope Generator and even subtle non-symmetrical clipping of signals
• Summing stage with an AUXiliary IN allows for chaining of multiple units creating larger mixes
• Direct coupled, process audio or control signals
• Utilises 4 vactrols
• Pairs well with modDemix and MATHS
Specifications
| Width: | 8hp |
| Max Depth: | 24mm |
| Power: | +12V: 25mA |
| -12V: 25mA |
