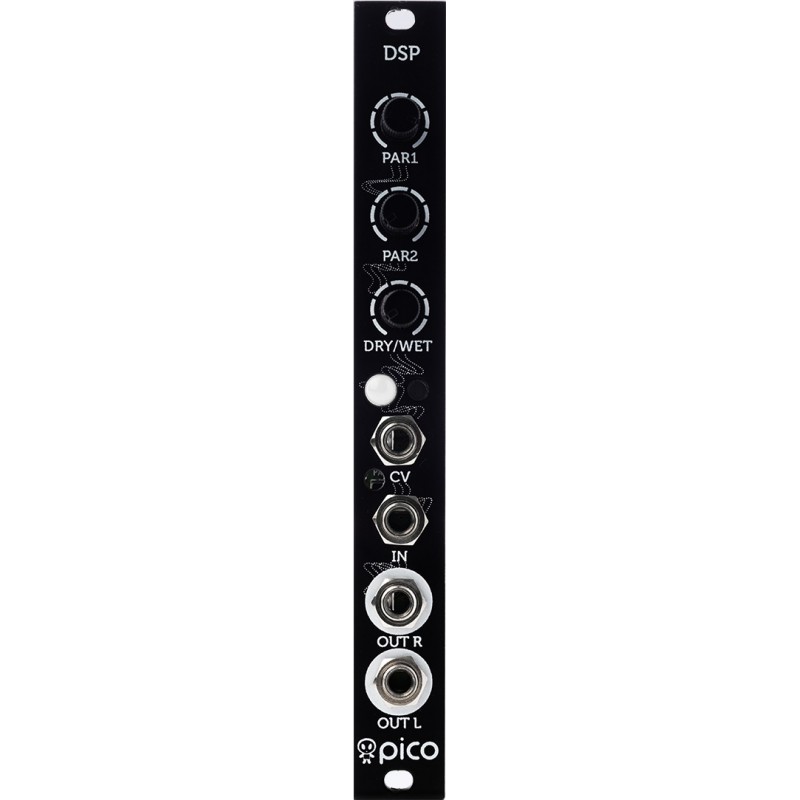

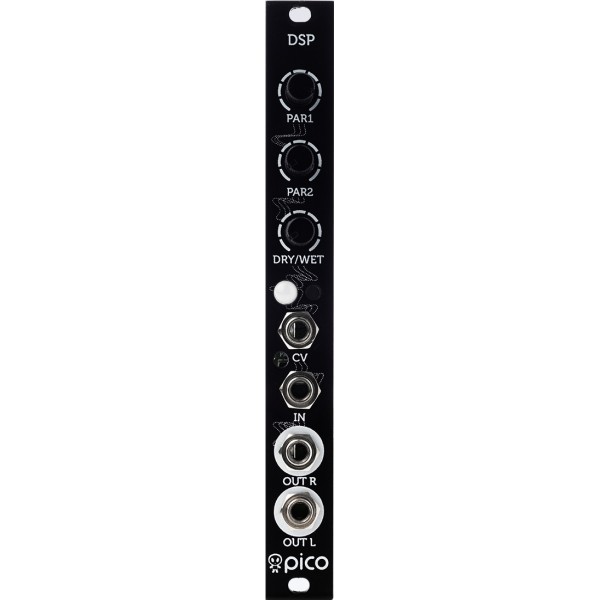

Erica Synths Pico DSP
The Erica Synths Pico DSP is the smaller brother to their famous Black Hole DSP module. It features 8 custom effects with two adjustable parameters and CV control over the first parameter.
Features
• 8 great sounding stereo custom effects.
• 2 adjustable parameters per effect.
• CV control over the first parameter.
• Dry / Wet control.
• Stereo output.
• Colour coded effects selection.
Input signal amplitude (without clipping): | 10Vptp |
CV amplitude for full parameter sweep: | -5V - +5V |
Width: | 3hp |
Max Depth: | 35mm |
Power: | +12V: +83mA |
-12V: -20mA |
