Endorphin.es Running Order Eurorack Dual Channel Trigger Sequencer Module

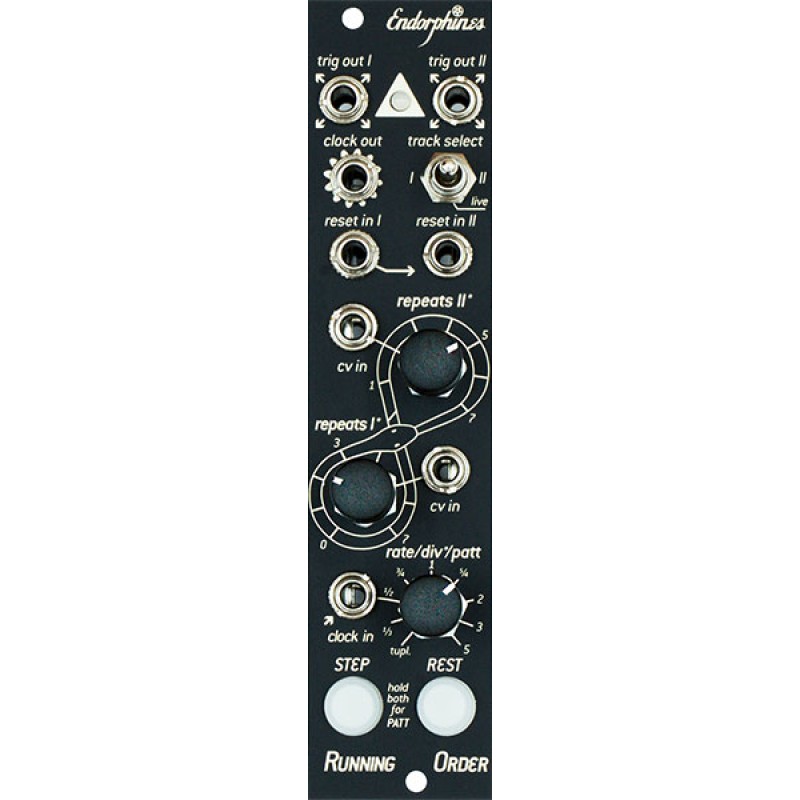

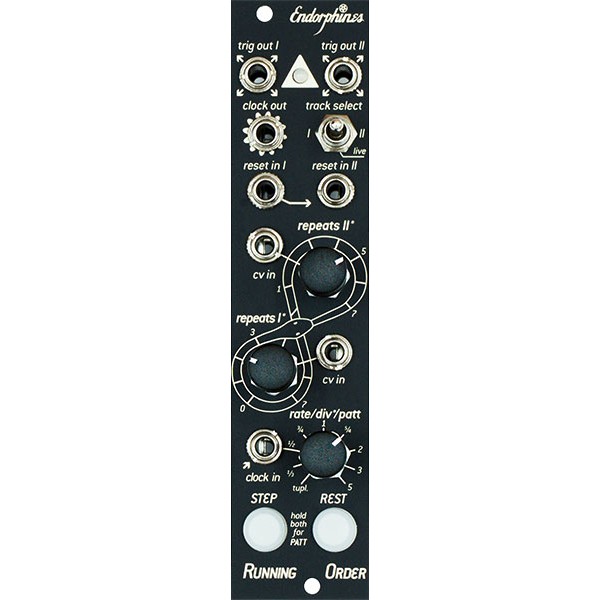

Endorphin.es Running Order - Dual Channel Trigger Sequencer
Running Order is a two track trigger sequencer. It can be a precise master clock or manipulate incoming clock signals and works great in use as a sub-sequencer / divider in your Eurorack environment.
Features
• Zero-jitter clock generation: less than 50 microseconds internal clock jitter
• 101 style 1/16th note input mode (step / rest) with manual or CV controllable amount of trigger repeats when the active trigger step happens
• Euclidean mode enabled for each tracks where we set Euclidean total steps amount in the circle and then amount of triggers happening in that circle
• Separate synchronization (reset) inputs, sync for track 1 is normalled to track 2
• Clock divider for incoming external clock allows to quickly obtain various musical divisions on the fly, including triplets of course but more importantly tuplets mode allows to stretch desired amount of triggers happening into a single bar
• Separate mute buttons for each track
• 8 patterns of trigger sequences stored in the module and recalled on the next power up
| Width: | 6hp |
| Max Depth: | 30mm |
| Power: | +12V: 30mA |
| -12V: 10mA |
