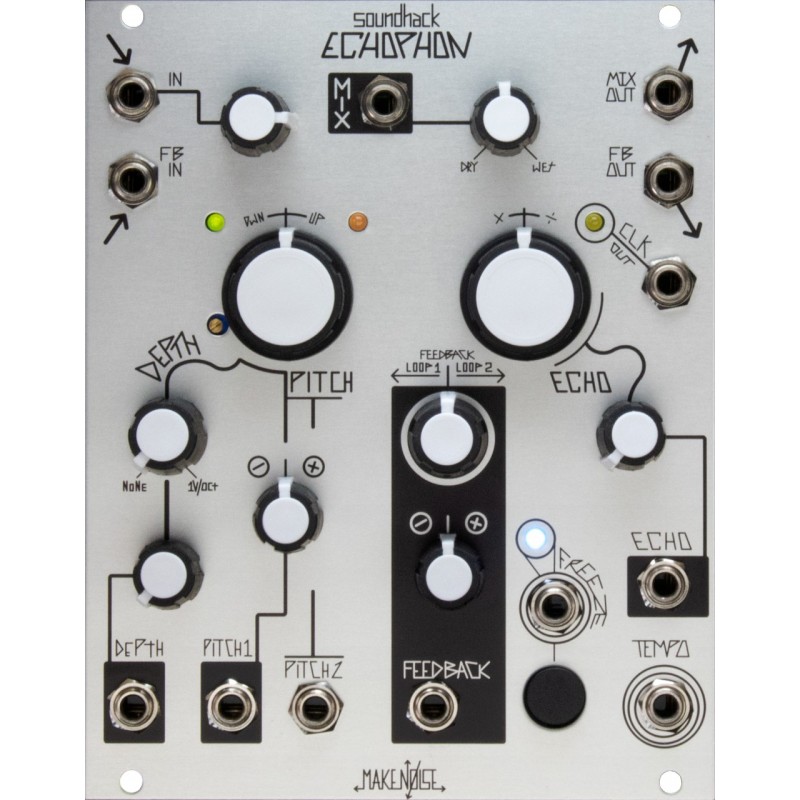

Make Noise Echophon Eurorack Pitch Shifting Echo Module
Make Noise Echophon - Pitch Shifting Echo
The Echophon music synthesizer module is a Pitch Shifting Echo with smooth time modulation, Tempo Sync, saturating feedback and a unique Pitch Shifting algorithm inspired by the Springer Tempophon and lovingly engineered by DSP Guru Tom Erbe of soundhack.
Features
• Shift Pitch of signal +/- 2 octaves
• Exponential control of delay time - maximum time 1.7 seconds, minimum time 7ms
• Tempo input allows synchronisation of Echos to multiple of or division of an external clock
• Two independent internal digital feedback paths (Loop 1 and Loop 2)
• External Analog Feedback Patch for filtered or processed echos
• Freeze button / gate input allows for hold, stutter and sampling techniques
• 24 bit ADC / DAC, 32 bit processing, 16 bit delay storage operating at 40kHz
• Vactrol based Mix circuit for smooth blending of dry and wet signals
• All Analog Dry Signal Path
• Voltage Control over all parameters
Specifications
| Width: | 20hp |
| Max Depth: | 30mm |
| Power: | +12V: 70mA |
| -12V: 40mA |
