DPW Design AV-1 - Dual Attenuverter

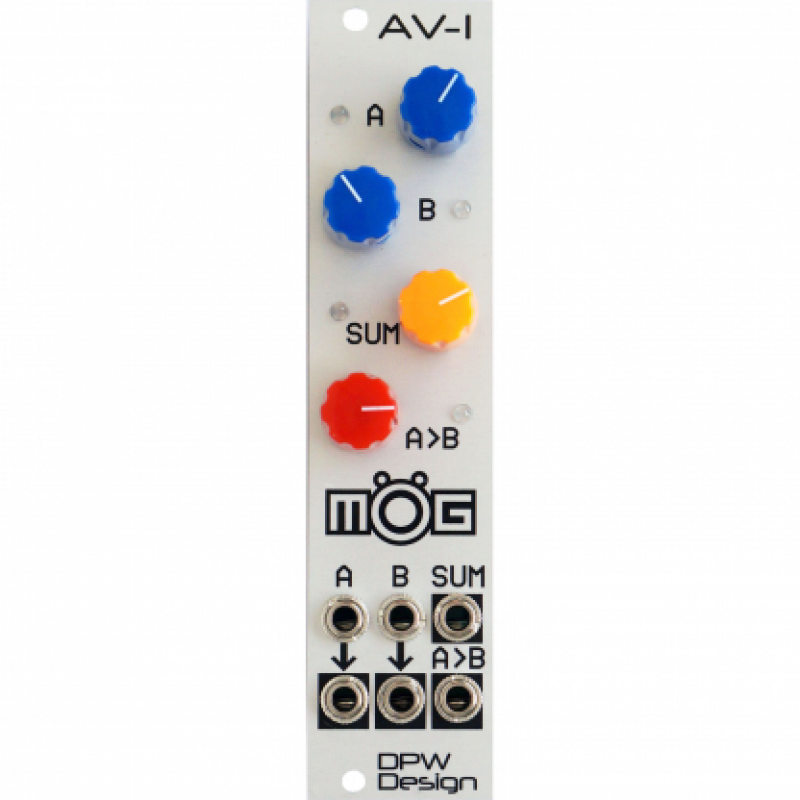

AV-1 is a Eurorack format dual attenuverter with some extra functions. It can be used as a utility unit for control voltages or as an audio unit.
It has besides the obvious two attenuverter in and outputs a suming output with an attenuverter to get more complex signals. This sums the signals after the A and B attenuverters.
When nothing is connected to A or B you can set the output to +/- 5v DC. This way you could run an LFO through A, use B as a voltage offset and get the sum out on SUM.
The output A>B is a comparator output with a volume control. This can be used to trigger other units depending on what's coming out from A and B.
The A>B can also be used to make, for instance, a PWM signal out of a sinus in on A and an LFO in on B.
The A>B output is +/- 5v and a bit wave shaped so the square wave out should sound good if used for audio.
Next to each knob is a green / red LED showing the level and polarity of the output.
The green / red LED next to the A/B knob shows the signal before the red volume knob so you can see how the comparator reacts before turning up the volume.
Specifications
| Width: | 6hp |
| Max Depth: | 25mm |
| Power: | +12V: 45mA |
| -12V: 45mA |
