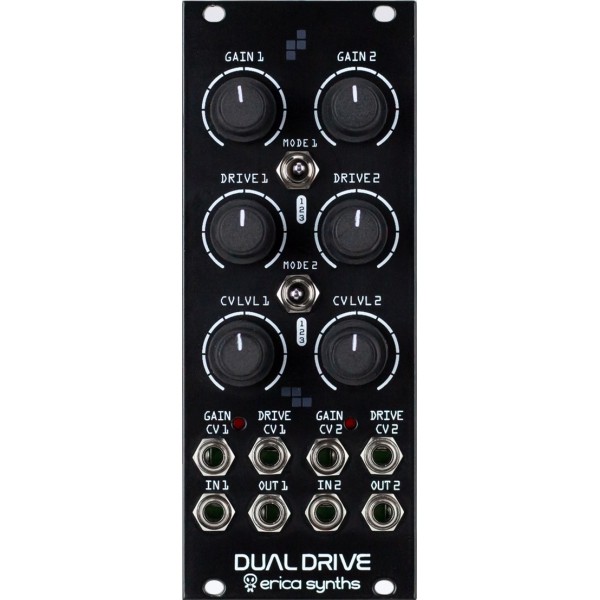

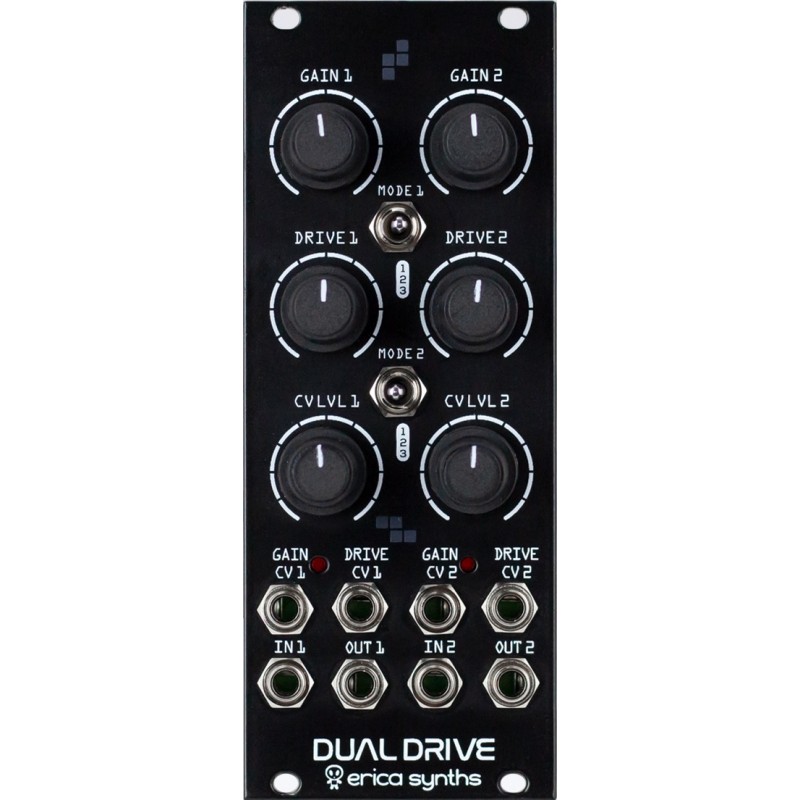

Erica Synths Dual Drive
For extreme, distorted drums the Erica Synths Dual Drive module is a must! The module features two identical overdrive sections with adjustable Gain and Drive level, each with three flavours of overdrive. CV control over Gain and Drive adds more expression, while a built in limiter prevents the output signal running into undesired clipping. Furthermore, the output of the first section is normalled to the input of the second, so you automatically get an extreme, versatile dual overdrive circuit. The module can be used in stereo applications as well and it's not limited for drums only - it will turn any sound source into a roaring monster.
Features
• Two identical overdrive circuits.
• Manual Gain and Drive controls.
• CV control with an attenuator for Gain and Drive.
• Mode switch for selecting one of three flavours.
• Output signal limiter.
• Drive level LEDs.
Specifications
| Audio output level: | -5V ... +5V |
| CV level (full span) | -5V ... +5V |
| Width: | 10hp |
| Max Depth: | 50mm |
| Power: | +12V: +58mA |
| -12V: -58mA |
