Sample Drum

New COMING SOON Sample Drum

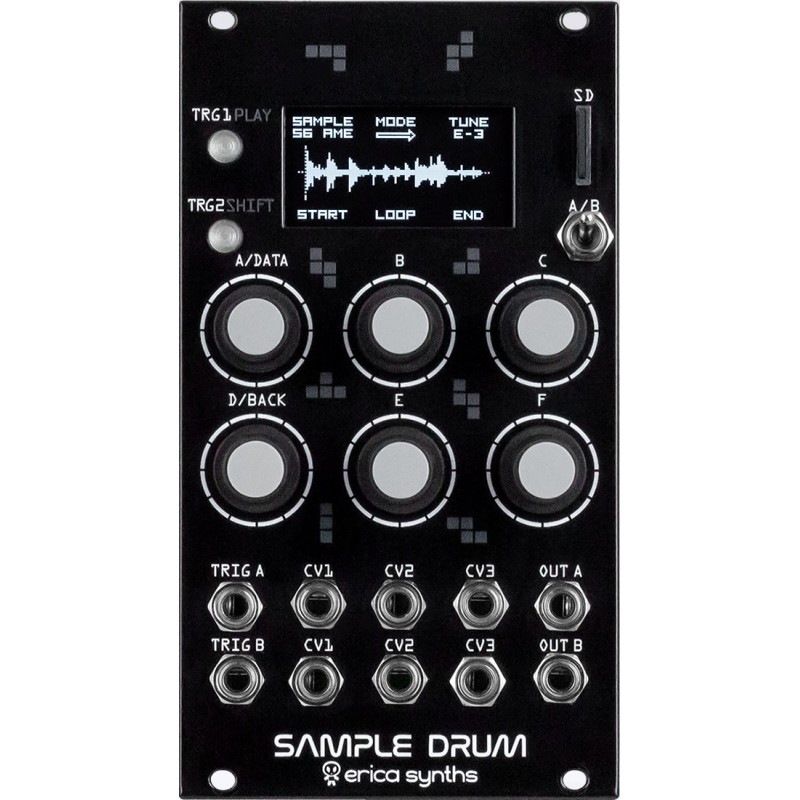

Erica Synths Sample Drum - Sample Player


Sample Drum is a 14hp eurorack sample player module with straight-forward, intuitive interface, functionality and great sound quality, designed with live performance use in mind.


Features


•           Sample playback with fast trigger response (~1ms)

•           Various effects for real time sample processing

•           Sample recording functionality

•           Manual and automatic sample slicing

•           Cue point loading from WAV files

•           1V/Oct tracking

•           3 assignable CV inputs per channel

•           Preset memory

•           User-friendly interface

•           Performance mode

•           16GB SD card with factory preset samples included


The Sample Drum is composed of two identical parts and allows you to play back, record and slice up samples or loops directly in your modular system. For processing there are different play modes, tuning functions (including 1V/Oct pitch tracking), virtual VCAs plus AD envelopes and real-time effects. Three freely assignable CV inputs per channel guarantee a lot of expression during performance. 16bit mono wav samples are loaded in RAM (32mb / #5 minutes of sampling time) from SD card (16gb SD card with factory preset samples comes with the module) for instantaneous playback response. All settings can be saved and recalled during live performance.


The Sample Drum comes with free factory preset sample pack developed by producers Pitch Black, Nero Bellu, T.Raumschmiere, Otto von Schirach and Raitis AG. If you use your own samples in the Sample Drum, you take all responsibility on complying with copyright laws.


Specifications


Audio output amplitude:10Vptp
Octave range:C0 to C8
RAM size:32mb, 5 minutes of samples
Sample rate:48kHz, 16bit
Sample recording rate:48kHz, 12bit
CV input range (configurable):-5V to +5V
Width:14hp
Max Depth:30mm
Power:+12V: 65mA

-12V: 2mA
