Erica Synths Black Wavetable VCO Eurorack Voltage Controlled Oscillator Module

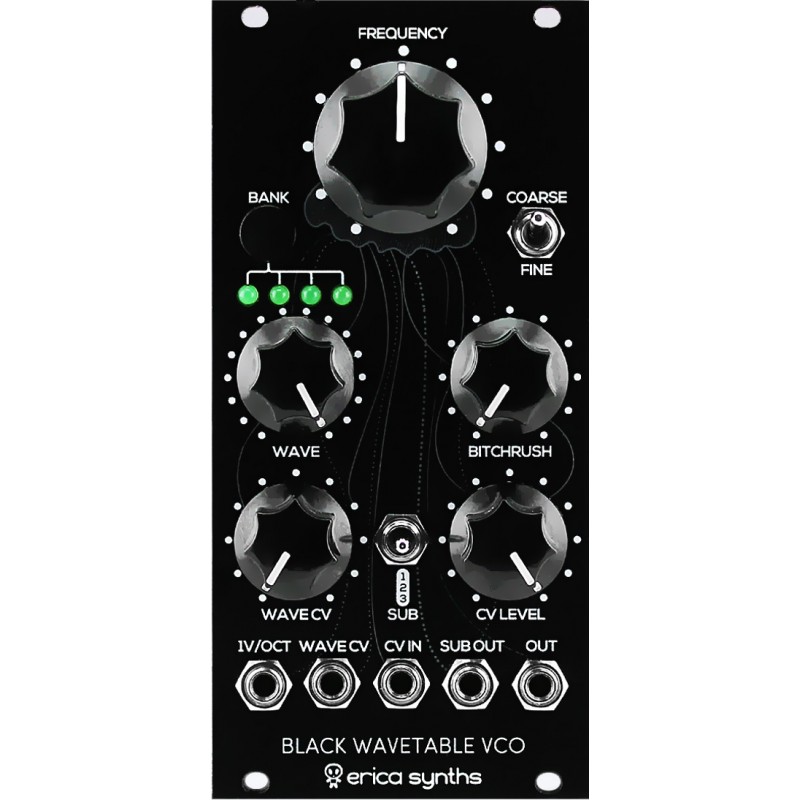

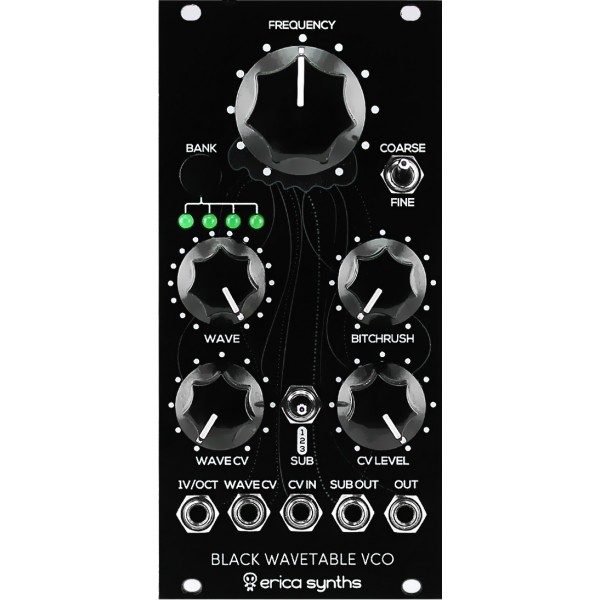

Erica Synths Black Wavetable VCO
Erica Synths Black Wavetable VCO is a compact, fat sounding wavetable VCO that features 16+ banks of selected waves: classical synths, FM synths, Erica Synths Modular, vowels and others
Features
• 16 wavetables of 16 waves.
• Additional ROM chips with extra waves.
• VC wave surf.
• VC bank surf.
• Manual and VC bitcrush.
• Built in VCA.
• Wave morphing.
• Suboscillator output
• 3 suboscialltor waves (-1 and -2 octaves)
The VCO has a separate -1 and -2 octaves suboscillator output, built in VCA and wave morphing feature for a more pleasant sound. Additional Rom chips (sold separately) with extra wavetables are available to adapt the module to your style of music making.
The Erica Synths Black Series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, they did not economise on the module width, they put design and usability first. Big knobs are assigned to functions that make a difference in the sound.
Specifications
| Output signal level: | -5V - +5V |
| Frequency range: | 30Hz - 5kHz |
| CV level input: | -10V - +10V |
| Width: | 12hp |
| Max Depth: | 25mm |
| Power: | +12V: +48mA -12V: -12mA |
