Doepfer A-151 Eurorack Quad Sequential Switch Module

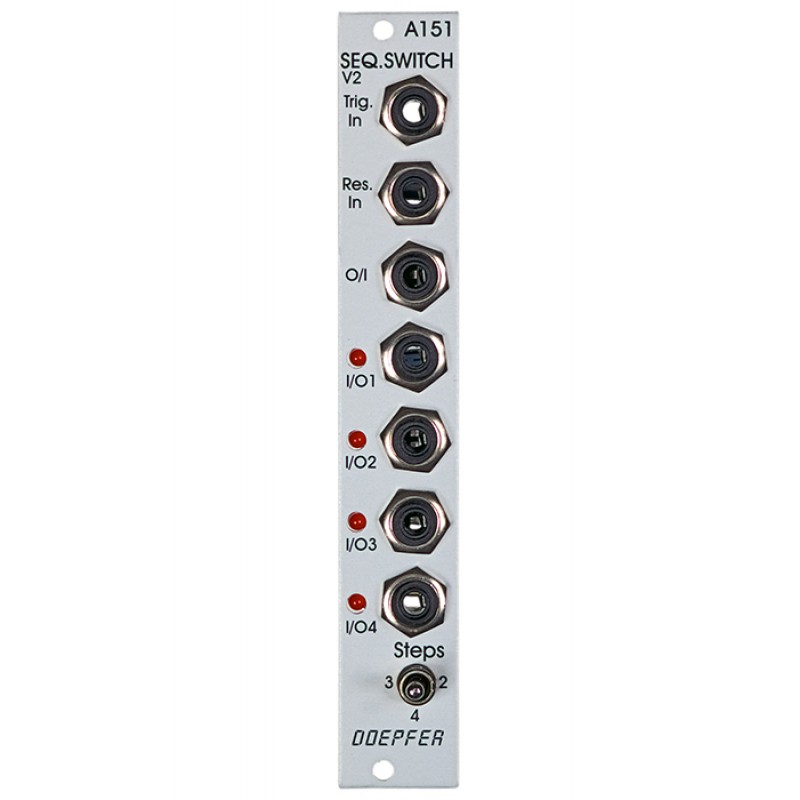

Doepfer A-151 - Quad Sequential Switch
The Doepfer A-151 Quad Sequential Switch is like an electronic four-position rotary switch. It includes trigger and reset inputs, four in / outputs, and a common out / input. Each time a pulse is received at the trigger input socket, the common out / input is connected to the next in / output. After the fourth in / output, the next trigger makes it step back to the first again, and so on.
A positive pulse at the reset input switches the out / input immediately back to the first in / output.
Voltages in the range -8V … +8V at the O/I resp. I/O sockets can be processed by the module.
Four LEDs indicate the active in / output (ie the on that is connected to the out / input at any particular time).
Specifications
| Width: | 4hp |
| Max Depth: | 20mm |
| Power: | +12V: +20mA |
| -12V: -10mA |
