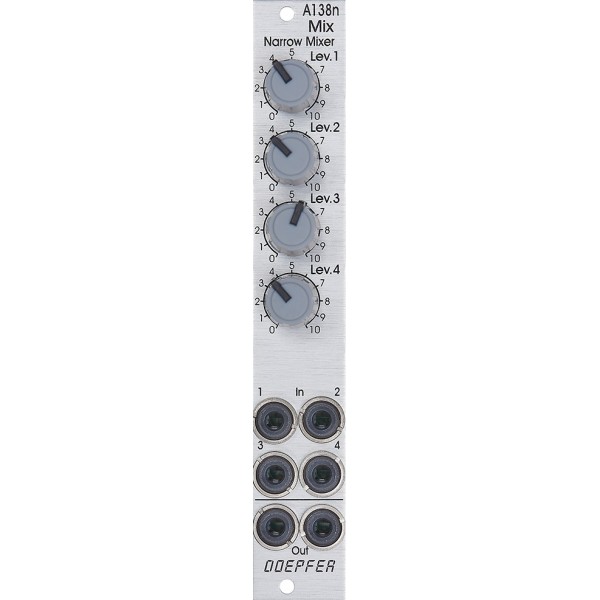

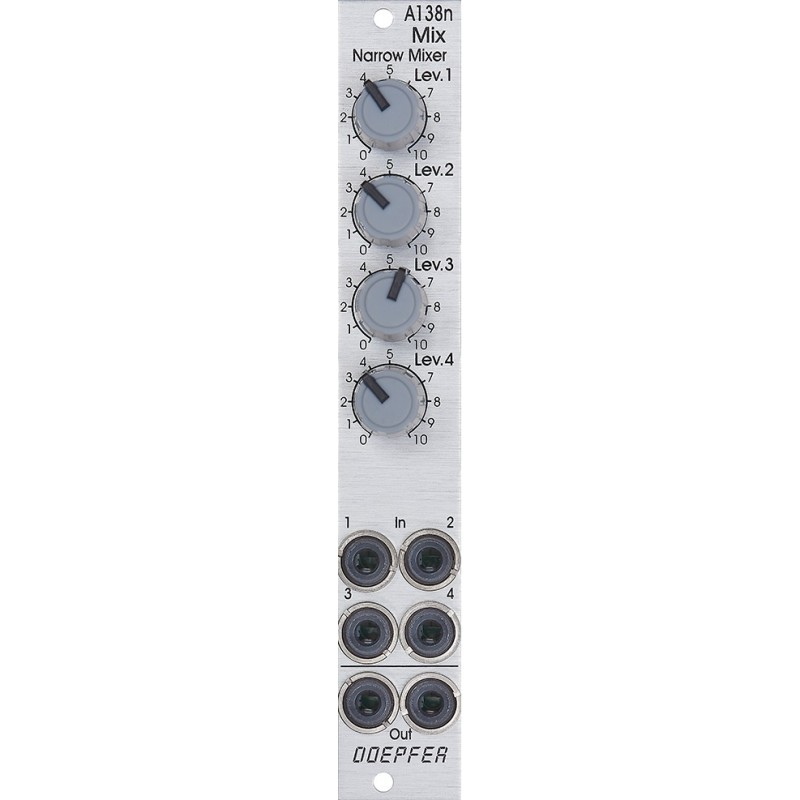

Doepfer A-138n - Narrow Mixer
The Doepfer A-138n is a simple four channel mixer, which can be used with either control voltages or audio signals. Each of the four inputs has an attenuator with a linear response curve available. The amplification range is 0....1. The output is twice available (two sockets, hard wired like a multiple).
Specifications
| Width: | 4hp |
| Max Depth: | 20mm |
| Power: | +12V: 10mA |
| -12V: 10mA |
