Doepfer A-132-1 Eurorack Dual Low Cost Voltage Controlled Amplifier Module
-22%
Click Image for Gallery

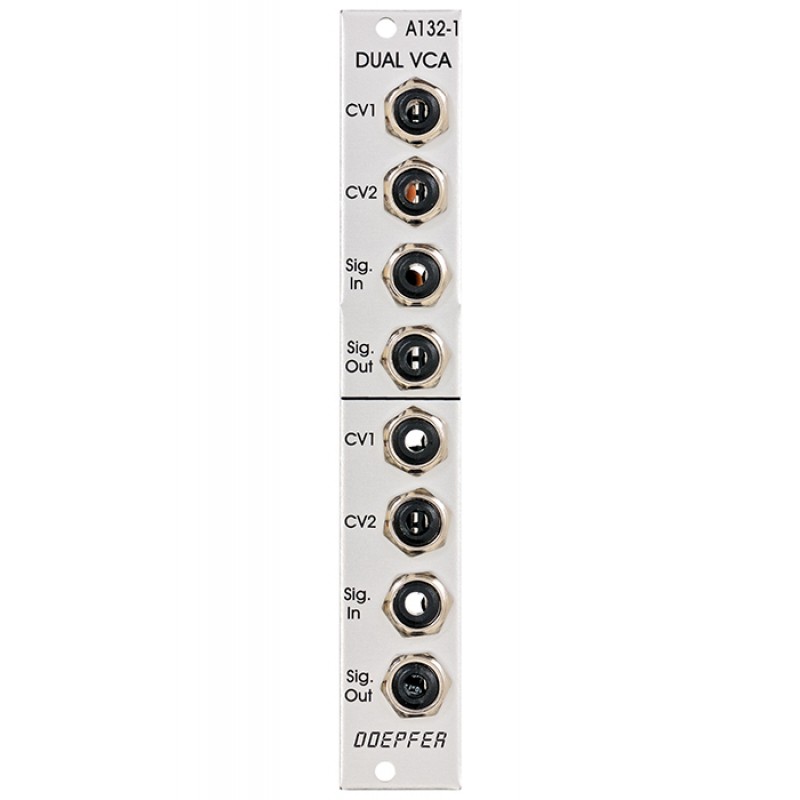

Doepfer A-132-1 - Dual Low Cost VCA
The Doepfer A-132-1 (Dual Low Cost VCA) contains two voltage-controlled amplifiers, with a linear response most suited to regulating the level of control voltages (ADSR amount, level of vibratro effect etc). In non-critical situations, though, its VCA can be used to control audio signals.
Amplification is governed by the sum of the voltages patched into the two CV inputs.
Specifications
| Width: | 4hp |
| Max Depth: | 20mm |
| Power: | +12V: +20mA |
| -12V: -10mA |
