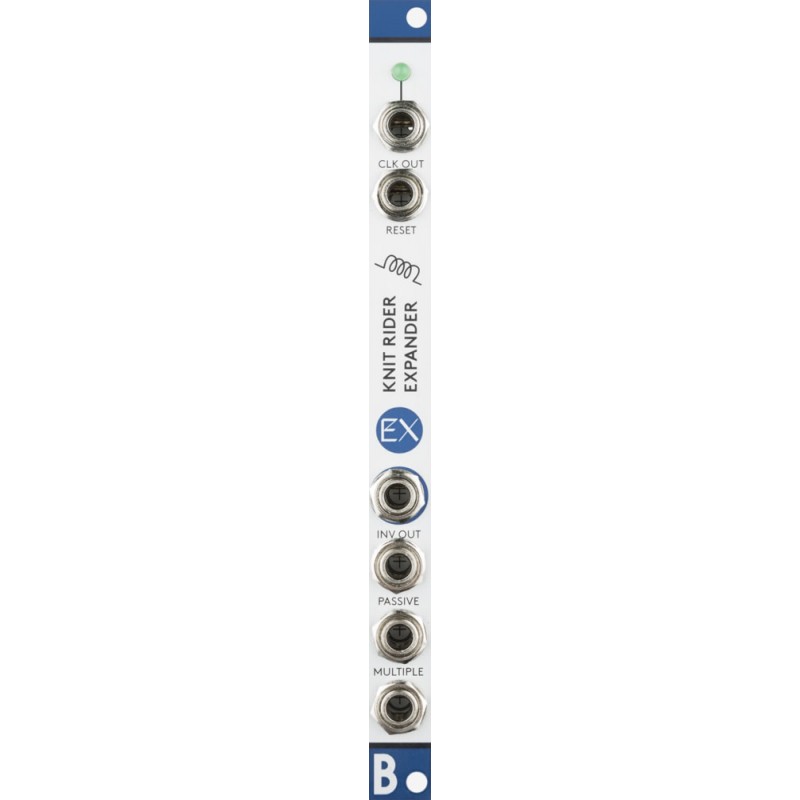

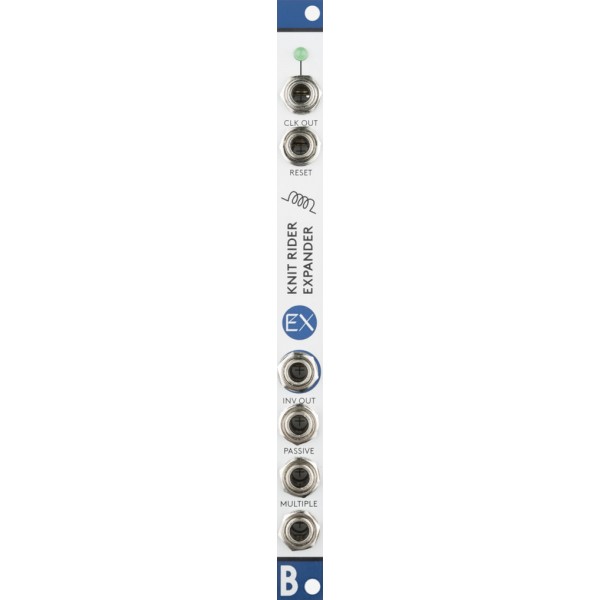

Bastl Instruments Knit Rider Expander (Aluminium) Eurorack Module

-22% Bastl Instruments Knit Rider Expander (Aluminium) Eurorack Module

Bastl Instruments Knit Rider Expander - Reset Jack and Clock Out & more

The Knit Rider Expander adds clock OUT and reset IN / OUT connections to the Knit Rider sequencer. It doesn't work without the Knit Rider eurorack module


Clock Out outputs a pulse each time a step on the Knit Rider changes (1 step = 4 sub-steps). It also has an indicator LED.


The Reset socket acts as an output or input, depending on whether the Knit Rider is the master or slave. In master mode, the reset outputs a pulse each time you press the start stop button. In slave mode, it acts as an input. When it detects a pulse, the sequencer goes to it's first step (it will play the first step with the first incoming clock pulse).


An additional feature of this expander is a 3-way passive multiple clock inverter. The lower 3 connectors are simple passive multiples.


The uppermost connector outputs an inverted version of the signal in the passive multiple. The inversion is done with a 2.5V threshold (0V or lower becomes 5V and 5V and higher becomes 0V).


Features

•           Expanding the connectivity of the Knit Rider eurorack module

•           Clock output with indicator LED

•           Reset socket can be either output or input, depending on the master / slave settings on the Knit Rider

•           3 way passive multiple with clock signal inverter

•           Handmade by Bastl Instruments in Brno, Czech Republic


Specifications


Width:2hp
Power:Powered from the Knit Rider module

With the expander connected the final current draw of the Knit Rider is +12V: <40mA


Bastl Instruments Knit Rider Expander: User Manual

Bastl Instruments Knit Rider Expander: Manufacturer Product Page
